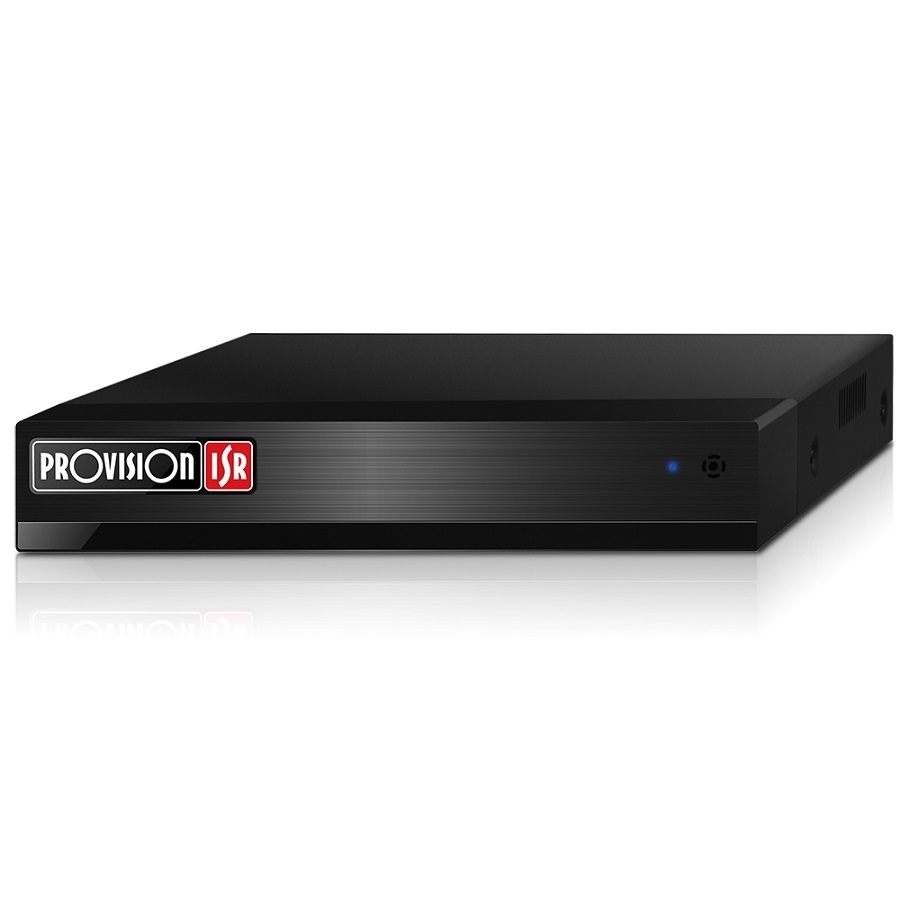

Dvr / Provision Isr / SH-16200A5N-5L(1U)-V2 / 16 Canales + 8 IP / Hibrido All In Ahd / Cvi / Tvi / Cvbs + IP / Rs-485

Sh-16200a5n-5l(1u)-v2video:input: 16ch standard bnc + 8ch IP (over network)output: HDMI(1920×1080), vga (1280×1024, 1024×768), cvbs(spot)              recording:IP: 5mp and lower: 25/30fps per channelahd: 5mp lite: up to 10fps per channel, 4mp lite / 2mp: up to 12/15fps per channel, 2mp lite: up to 25/30fps per channeltvi: 5mp lite: up to 10fps per channel, 4mp lite / 2mp: up to 12/15fps per channel, 2mp lite: up to 25/30fps per channelcvi: 4mp lite / 2mp: up to 12/15fps per channel, 2mp lite: up to 25/30fps per channelcvbs: 960h: up to 25/30fps per channelplayback:16 channel simultaneously (local) 8 channel simultaneously (remote)analytics:for IP channels: line crossing (with direction choice), sterile area, item monitoring, camera tampering, smart searchfor hd analog channels: line crossing (no direction choice), sterile area, smart searchbandwidth:incoming: 32mbpsoutgoing: 96mbpsaudio:input: 8 channel (rca) + IP cameras inputsoutput: 1 channel (rca) + IP cameras inputs2-way audiostorage:2 x SATA (up to 8tb) + 1 x e-SATA (8tb)USB port: 2 x usb2.0network: rj-45: 100mbpsalarm: input: 16ch + IP cameras inputs output: 4ch + IP cameras outputsptz / keyboard:1 x rs485 protocol: pelco d, pelco p, samsung, visca, onvif, coc
