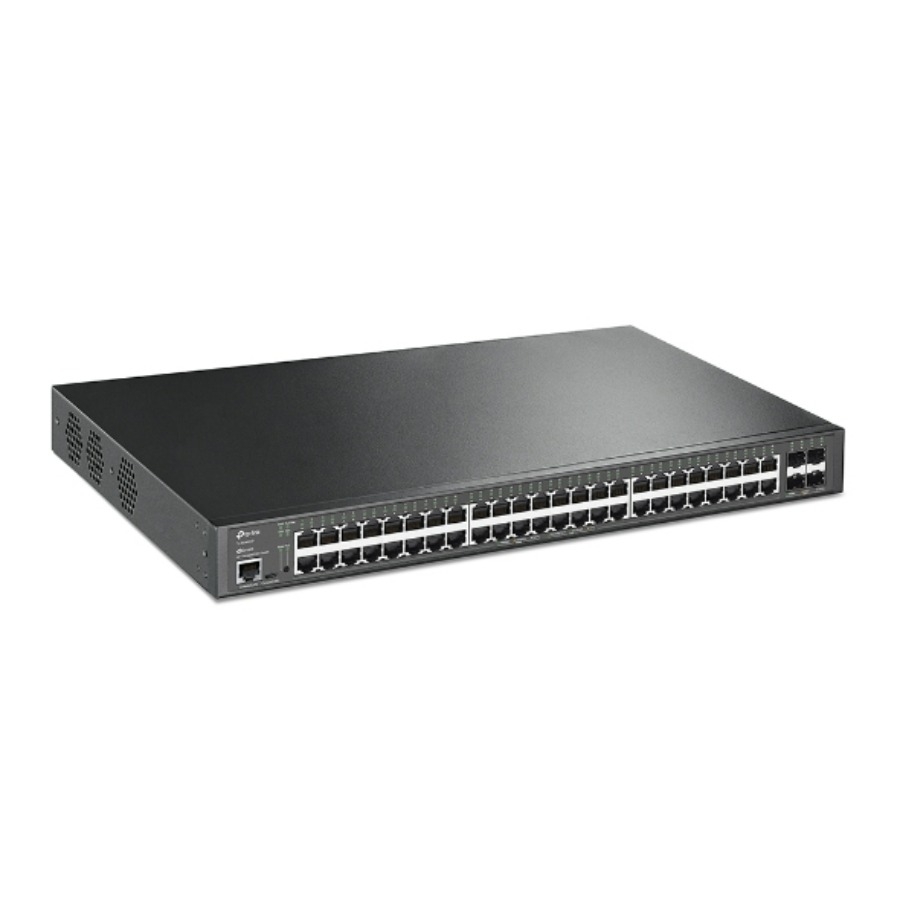

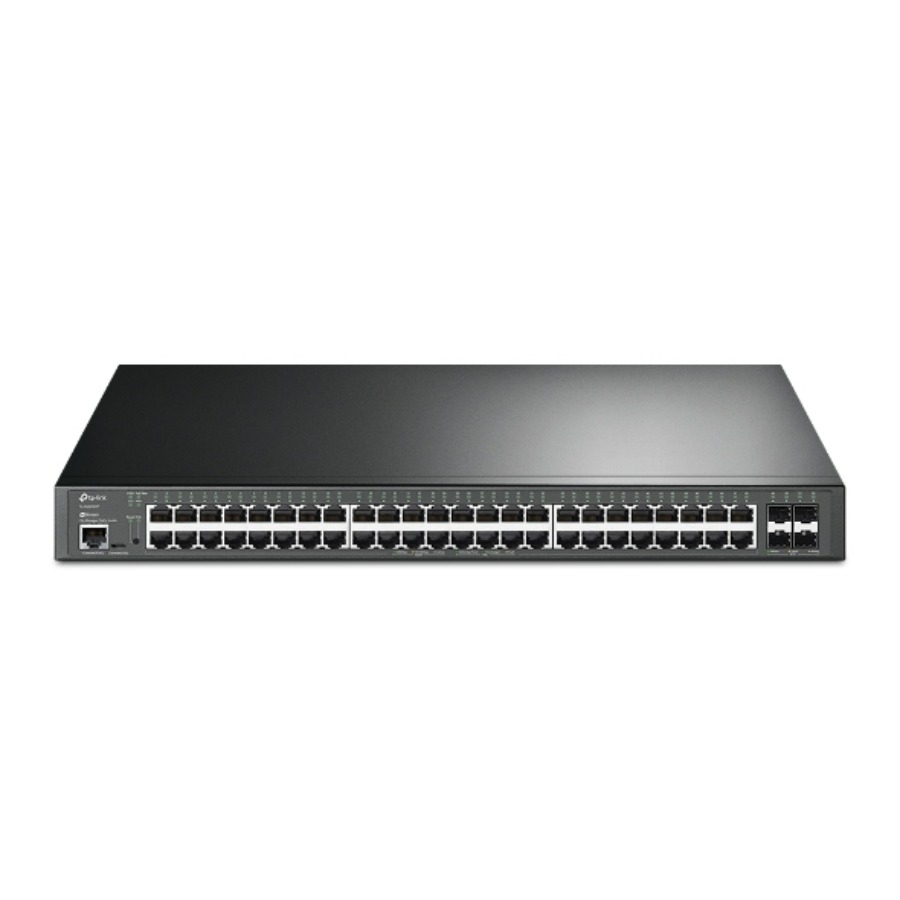

Switch TP-LINK SG3452XP Omada 48P POE Ge Administrable 4SFP+ 10GE L2

Características de hardware interface• 48× 10/100/1000 mbps rj45 POE+ ports• 4× 10g sfp+ slots• 1× rj45 console port• 1× micro-USB console portcantidad de ventiladores3fuente de alimentación100-240 v ac~50/60 hzpuertos POE+ (rj45)• standard: 802.3at/af compliant• POE+ ports: 48 ports, up to 30 w per port• power budget: 500 w*dimensiones (w x d x h)17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) montajerack mountableconsumo máximo de energía• 49.19 w (110v/60hz) ( no pd device connected)• 635.7 w (110v/60hz) ( with 500 w pd device connected)disipación máxima de calor• 167.85 btu/hr (110 v/60 hz) (no pd connected)• 2169.2 btu/hr (110 v/60 hz) (with 500 w pd connected)rendimiento capacidad de switcheo176 gbpstasa de reenvío de paquetes130.9 mppstabla de mac address16 kpaquetes de memoria de búfer12 mbitjumbo frame9 kbcaracterísticas de software calidad de servicio• 8 priority queues• 802.1p cos/dscp priority• queue scheduling- sp (strict priority)- wrr (weighted round robin)- sp+wrr• bandwidth control- port/flow based rating limiting• smoother performance• action for flows- mirror (to supported interface)- redirect (to supported interface)- rate limit- qos remarkcaracterísticas de l2 y l2 +• link aggregation- static link aggregation- 802.3ad lacp- up to 8 aggregation groups, containing 8 ports per group• spanning tree protocol- 802.1d stp- 802.1w rstp- 802.1s mstp- stp security: tc protect, bpdu filter, root protect• loopback detection- port based – vlan based• flow control- 802.3x flow control- hol blocking prevention• mirroring- port mirroring- cpu mirroring- one-to-one- many-to-one- tx/rx/bothl2 multicast• igmp snooping- igmp v1/v2/v3 snooping- fast leave- igmp snooping querier- igmp authentication• igmp authentication• mld snooping- mld v1/v2 snooping- fast leave- mld snooping querier- static group config- limited IP multicast• mvr• multicast filtering: 256 profiles and 16 entries per profilevlan• vlan group- max 4K vlan groups• 802.1q tagged vlan• mac vlan: 30 entries• protocol vlan: protocol template 16, protocol vlan 16• private vlan• gvrp• vlan vpn (qinq)- port-based qinq- selective qinq• voice vlanlista de control de acceso• time-based acl• mac acl- source mac- destination mac- vlan id- user priority- ether type• IP acl-source IP- destination IP- fragment- IP protocol- tcp flag- tcp/udp port- dscp/IP tos- user priority• combined acl• packet content acl• ipv6 acl• policy- mirroring- redirect- rate limit- qos remark• acl apply to port/vlanseguridad• IP-mac-port binding- 512 entries- dhcp snooping- arp inspection- ipv4 source guard: 100 entries• ipv6-mac-port binding- 512 entries- dhcpv6 snooping- nd detection- ipv6 source guard: 100 entries• dos defend• static/dynamic port security- up to 64 mac addresses per port• broadcast/multicast/unicast storm control- kbps/ratio control mode• 802.1x- port base authentication- mac base authentication- vlan assignment- mab – guest vlan- support radius authentication andaccountability• aaa (including tacacs+)• port isolation• secure web management through https with sslv3/tls 1.2• secure command line interface (cli) management with sshv1/sshv2• IP/port/mac based access controlipv6• ipv6 dual ipv4/ipv6• multicast listener discovery (mld) snooping• ipv6 acl• ipv6 interface• static ipv6 routing• ipv6 neighbor discovery (nd)• path maximum transmission unit (mtu) discovery• internet control message protocol (icmp) version 6• tcpv6/udpv6• ipv6 applications- dhcpv6 client- ping6- tracert6- telnet (v6)- ipv6 snmp- ipv6 ssh- ipv6 ssl- http/https- ipv6 tftpl3 features• 16 ipv4/ipv6 interfaces• static routing- 48 static routes• static arp- 128 static entries• proxy arp• gratuitous arp• dhcp server • dhcp relay- dhcp interface relay- dhcp vlan relay• dhcp l2 relaycaracterísticas avanzadas• automatic device discovery• batch configuration• batch firmware upgrading• intelligent network monitoring• abnormal event warnings• unified configuration• reboot schedulemibs• mib ii (rfc1213)• interface mib (rfc2233)• ethernet interface mib (rfc1643)• bridge mib (rfc1493)• p/q-bridge mib (rfc2674)• rmon mib (rfc2819)• rmon2 mib (rfc2021)• radius accounting client mib (rfc2620)• radius authentication client mib (rfc2618)• remote ping, traceroute mib (rfc2925)• support TP-LINK private mibadministración omada appyes. Requiring the use of oc300, oc200, omada cloud-based controller, or omada software controller.centralized management• omada cloud-based controller• omada hardware controller (oc300)• omada hardware controller (oc200)• omada software controllercloud accessyes. Requiring the use of oc300, oc200, omada cloud-based controller, or omada software controller.zero-touch provisioningyes. Requiring the use of omada cloud-based controller.management features• web-based gui• command line interface (cli) through the console port, telnet• snmp v1/v2c/v3- trap/inform- rmon (1,2,3,9 groups)• sdm template• dhcp/bootp client• 802.1ab lldp/lldp-med• dhcp autoinstall• dual image, dual configuration• cpu monitoring• cable diagnostics• eee• password recovery• sntp• system logotros certificacionce, fcc, rohscontenidos del paquete• tl-sg3452xp switch• power cord• quick installation guide• rackmount kit• rubber feetrequisitos del sistemamicrosoft® windows® 98se, nt, 2000, xp, vista™ or windows 7/8/10/11, mac® os, netware®, unix® or linux.ambiente• operating temperature: 0–40 ℃ (32–104 ℉);• storage temperature: -40–70 ℃ (-40–158 ℉)• operating humidity: 10–90% rh non-condensing• storage humidity: 5–90% rh non-condensing
